Solution to Problem 266 Thermal Stress

266 Compound aluminum and steel bars

Problem 266

Calculate the increase in stress for each segment of the compound bar shown in Fig. P-266 if the temperature increases by 100°F. Assume that the supports are unyielding and that the bar is suitably braced against buckling.

Solution to Problem 248 Statically Indeterminate

248 Rod made of aluminum, steel, and bronze

Problem 248

Solve Problem 247 if the right wall yields 0.80 mm.

Solution to Problem 247 Statically Indeterminate

247 Aluminum steel bronze

Problem 247

The composite bar in Fig. P-247 is stress-free before the axial loads P1 and P2 are applied. Assuming that the walls are rigid, calculate the stress in each material if P1 = 150 kN and P2 = 90 kN.

Solution to Problem 246 Statically Indeterminate

246 FBD of composite bar between rigid walls

Problem 246

Referring to the composite bar in Problem 245, what maximum axial load P can be applied if the allowable stresses are 10 ksi for aluminum and 18 ksi for steel.

Solution to Problem 245 Statically Indeterminate

245 Composite bar between regid walls

Problem 245

The composite bar in Fig. P-245 is firmly attached to unyielding supports. Compute the stress in each material caused by the application of the axial load P = 50 kips.

Solution to Problem 108 Normal Stress

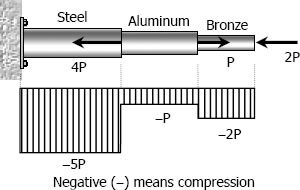

108 Composite rod: aluminum, bronze, and steel

Strength of Materials 4th Edition by Pytel and Singer
Problem 108 page 12

Given:
Maximum allowable stress for steel = 140 MPa
Maximum allowable stress for aluminum = 90 MPa
Maximum allowable stress for bronze = 100 MPa

Required: Maximum safe value of axial load P

Solution to Problem 107 Normal Stress

Composite rod: aluminum, bronze, and steel

Strength of Materials 4th Edition by Pytel and Singer
Problem 107 page 12

Given:
Axial load P = 3000 lb
Cross-sectional area of the rod = 0.5 in2

Required: Stress in steel, aluminum, and bronze sections
